High Pressure Centrifugal Backward Curved Fan / EC Industrial Fan Blower
Centrifugal Backward Curved Fan Description
This series Centrifugal Backward Curved Fan with metal or plastic forward curved impellers are driven by brushless DC motor with integrated electronics, which have the following features, such as compact construction, light weight, easy-saving, high reliability, long lifetime and stepless speed regulating etc.
They are widely used in automatic controlling equipments, and other applications where DC power supply is available such as electronics equipments, dust exhaust, heat exausting, air purification and so on.
Centrifugal Backward Curved Fan Details
- Insulation Class:B
- Bearing: Ball bearing
- Mode of operation: Continuous operation(S1)
- Direction of rotation: Anticlockwise, see on the leads
- Operation Temperature:-20℃~+60℃
- Weight:5.7kg
Energy savings with EC fans
Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans. Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to maintain the work area, the fans are run at roughly half the airflow.
Centrifugal Backward Curved Fan Parameters
| Name: | Centrifugal Backward Curved Fan | Feature: | High Pressure |
| Other Name: | Industrial Fan Blower | Operatation Voltage: | 176-264V |
| Frequency: | 50/60HZ | Rated Current: | 1.5A |
| Power: | 325W | Rated Speed: | 1920RPM |
| Air Flow 1: | 3100m³/h | Air Flow 2: | 1850CFM |
| Air Pressure: | 66mmH2O | Noise Level: | 75dba |

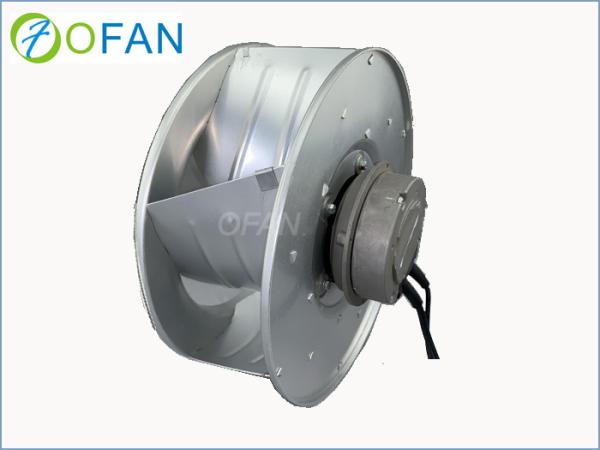

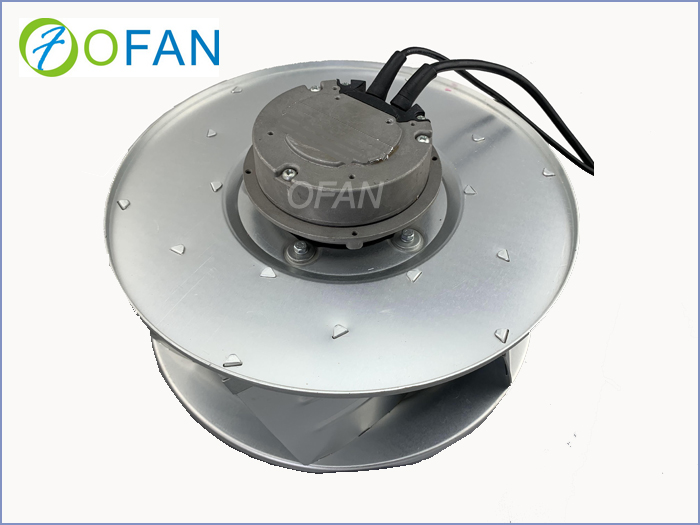

Centrifugal Backward Curved Fan Pictures
